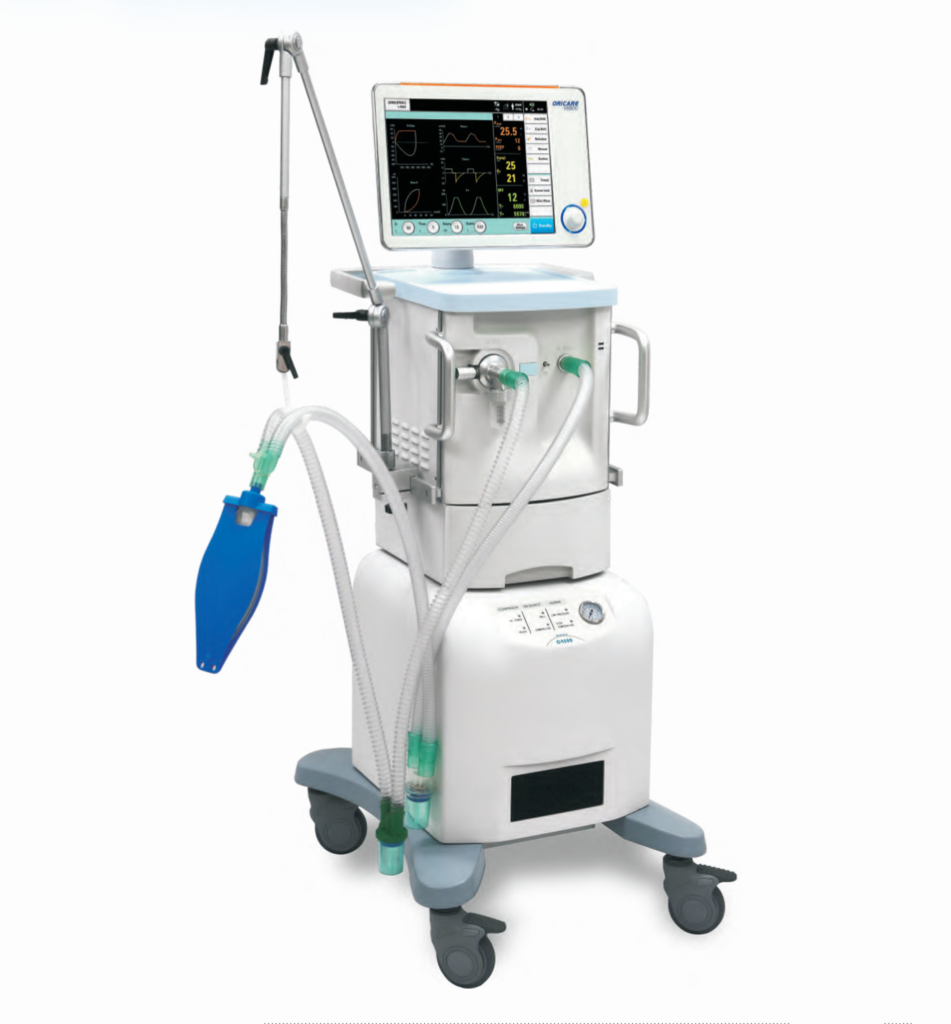

Oricare V8800 Ventilator System

Pneumatically driven and electronically controlled
Ventilation
Suitable for children and adults
Easy control of user interface by touch screen &
Navigator wheel
Sensitive adjustable flow trigger and pressure trigger
Lung mechanics monitoring and flow loops
15” TFT LCD color screen
Synchronized nebulizer
Inspiratory and expiratory hold
Manual inspiration
Smart suction
Built-in battery (>1 Hours) or operation extended
Batteries (>2hours operation
Easy to position ergonomic trolley available with
Lockable drawer and auxiliary AC outlets
Easy removeable and sterilizeable exhalation
Valve module
Parameters and Ranges

Tidal volume: 20-2500ml
Respiratory rate: 1-120bpm
Inspiration time:0.2-9s
Inspiratory pause time: 0-4s
Tslope : 0-2s
FiO2: 21%~100%
PEEP: 0-50cmH2O
CPAP: 2-20cmH2O
Psupport: 0-90cmH2O
Pinsp: 5-90cmH2O – USA
0-100cmH2O – International
Esens: 5%-80%
Flow patterns: square, decelerating
Inspiratory hold
Expiratory hold
Nebulizer: 30 or 45 minutes
Auto tube compensation
Compliance compensation
Graphical trends
Nurse call
